1200mm stainless steel sheet polishing machines

Name: 1200mm stainless steel sheet polishing machines
Brand: JINZHU
Price: 1 USD

Place of Origin : Guangdong, China (Mainland)

Brand Name : JINZHU

Price : US $1,000-100,000 / Sets | 2 Set/Sets (Min. Order)

MOQ : 2 Set/Sets

After-sales Service Provided : Engineers available to service machinery overseas

name : conveyor door handle polishing machine

machine size : 9600*700*1100mm

polishing head size : 1200*800*2000mm

main motor : 4kw, 1400r/m

spindle speed : 2300r/m

polishing head up/down distance : 500mm

feed distance : 350mm

polishing diameter can up to : 500mm

weight : 3000kg

warranty : one year

Contact Now

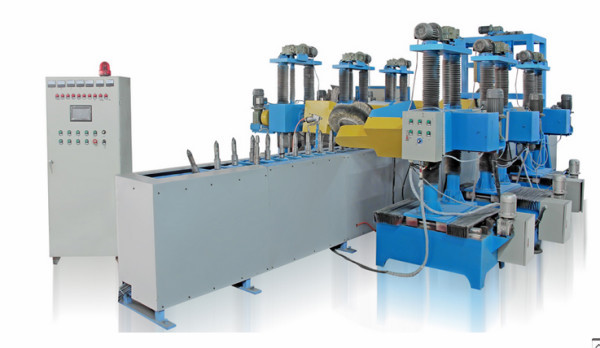

item: 360 degree conveyor door handle polishing machine

main parameters:

1	name	360 degree automatic door handle polishing machine
2	model	JZ-L8888
3	machine size	96007001100mm
4	polishing head size	12008002000mm
5	main motor	4kw, 1400r/m
6	conveyor motor	4-class 1.5kw SIEMENS
7	polishing head rotation motor	4-0.75kw*8pcs Taiwan
8	spindle speed	2300r/m
9	up/down motor	4-0.7kw*8pcs Taiwan
10	forward and backward motor	4-0.37kw*8pcs Taiwan
11	polishing head up/down distance	500mm
12	feed distance	350mm
13	polishing diameter can up to	500mm
14	polishing wax	with automatic spray wax device
15	main electric parts and PLC	siemens
16	voltage	380v-50HZ
17	weight	3000kg
18	max process size	230150160mm

1200mm stainless steel sheet polishing machines

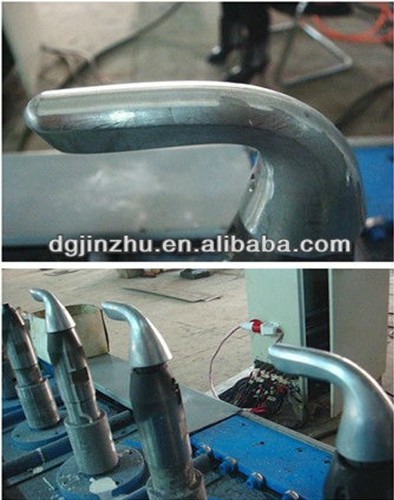

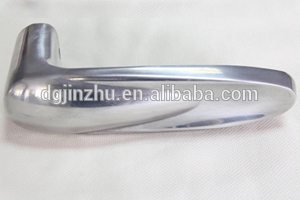

the door handle polishing machine mainly use for the door handle polishing, the effect of the polishing as follow:

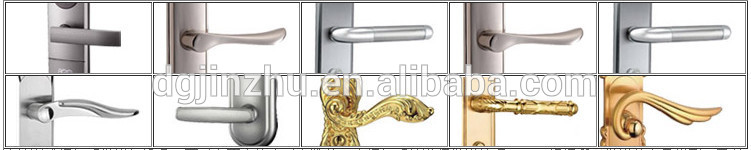

can use for varieties of door handles

packaging & shipping

the door handle polishing machine will be packaged in wooden case or container, and will be shipped in 20-30 days.

our services:

One year free maintenance

Pre-service training free of charge

Lifelong technical support

Company information:

Dongguan Jinzhu Machine Equipment Co.,Ltd is manufacturing the polishing machine, grinding machine, cnc metal spinning machine and for more than 10 years.
